Noble Clamping Ring ABS Drains

Shower drains for watertight installations.

Features

• Use with Noble sheet membrane in wet areas
• Meet plumbing code requirements

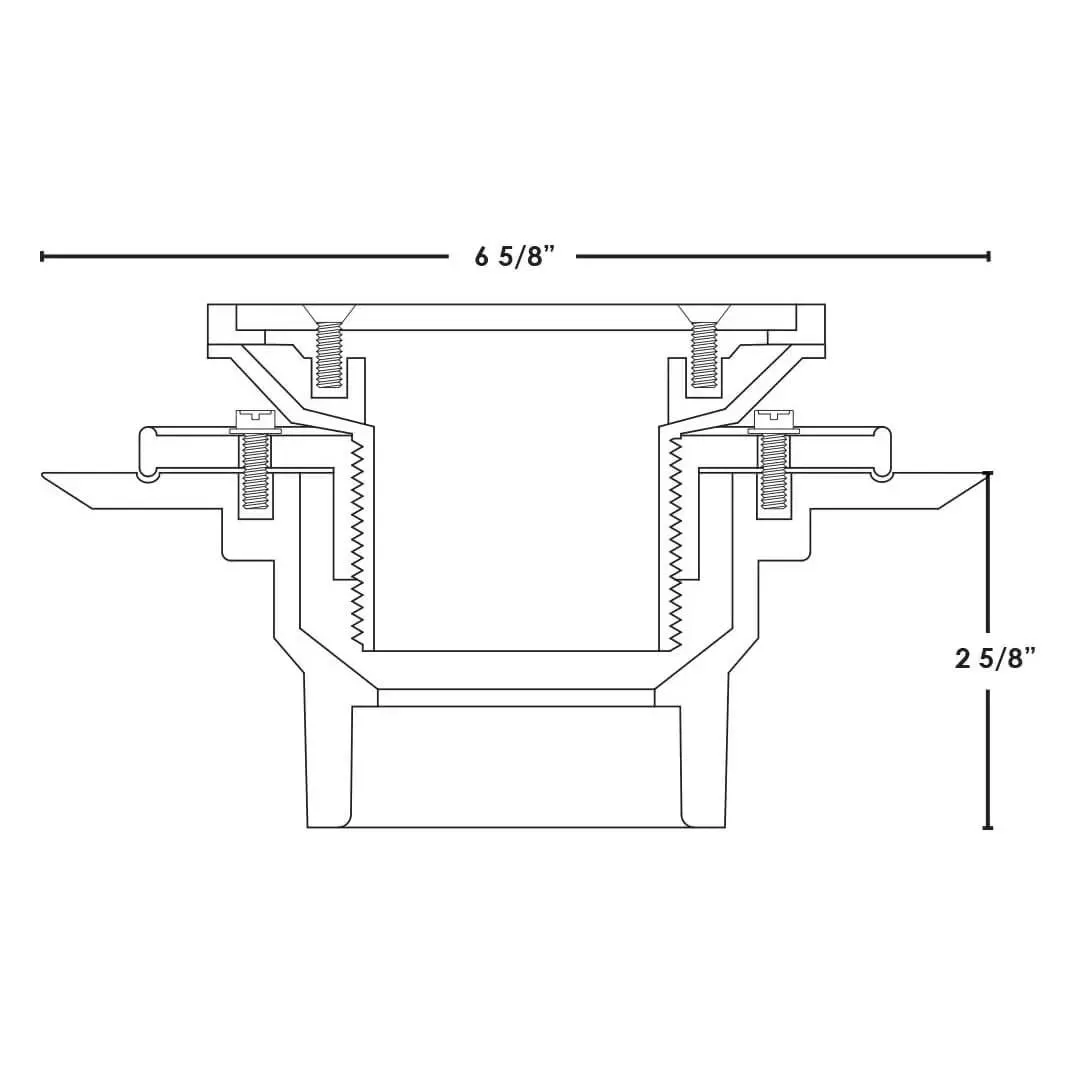

• The drain has a beveled flashing body/adapter for subfloor installation
• Strainer fastens to drain body with four stainless steel machine screws that thread into brass inserts
• The drain body has a membrane flange and a 2" Schedule 40 hub connection, which conforms to ASTM D2665
• Brass inserts in the collar and tailpiece prevent damage from tightening
• Weep slots and holes on both sides of the collar maximize drainage

Materials

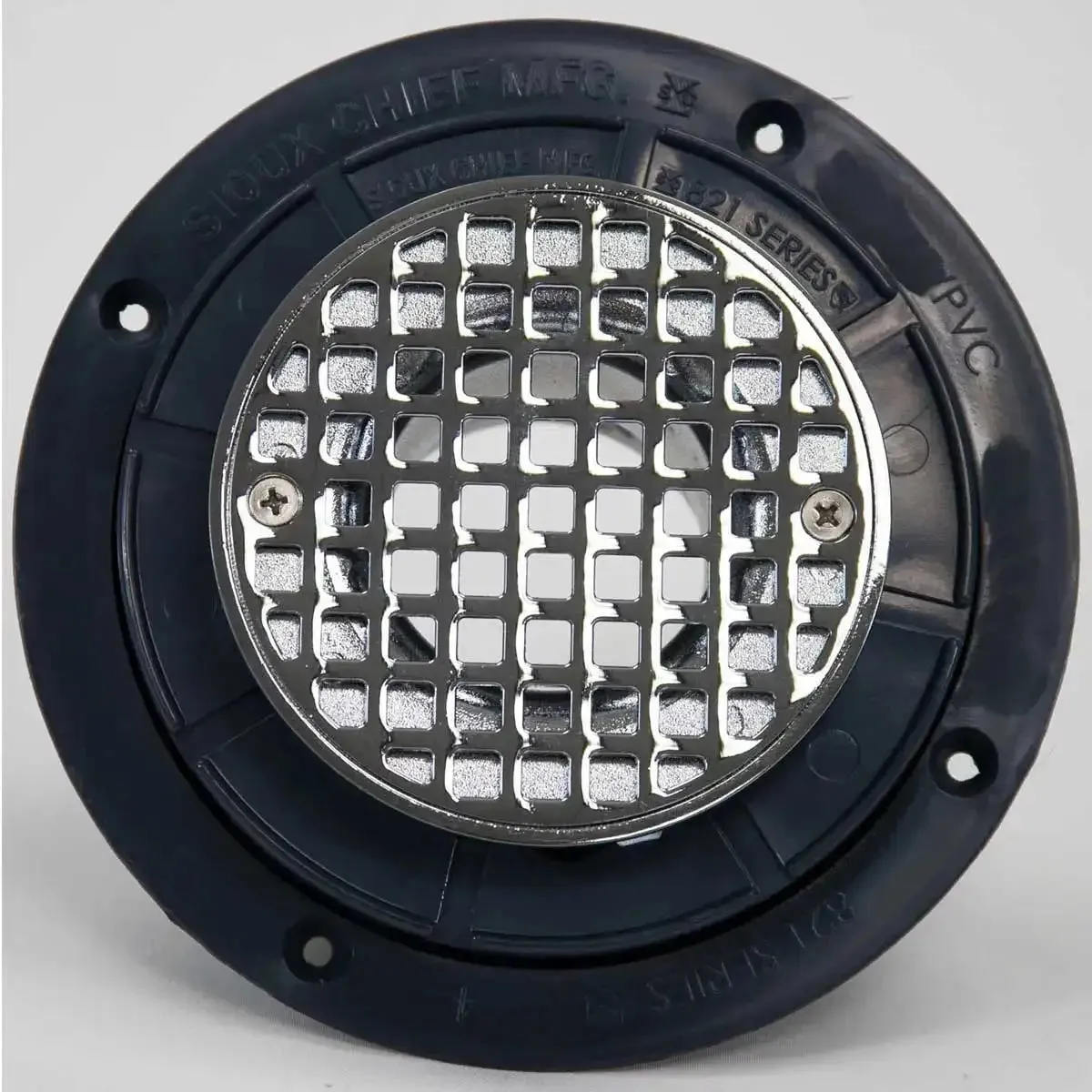

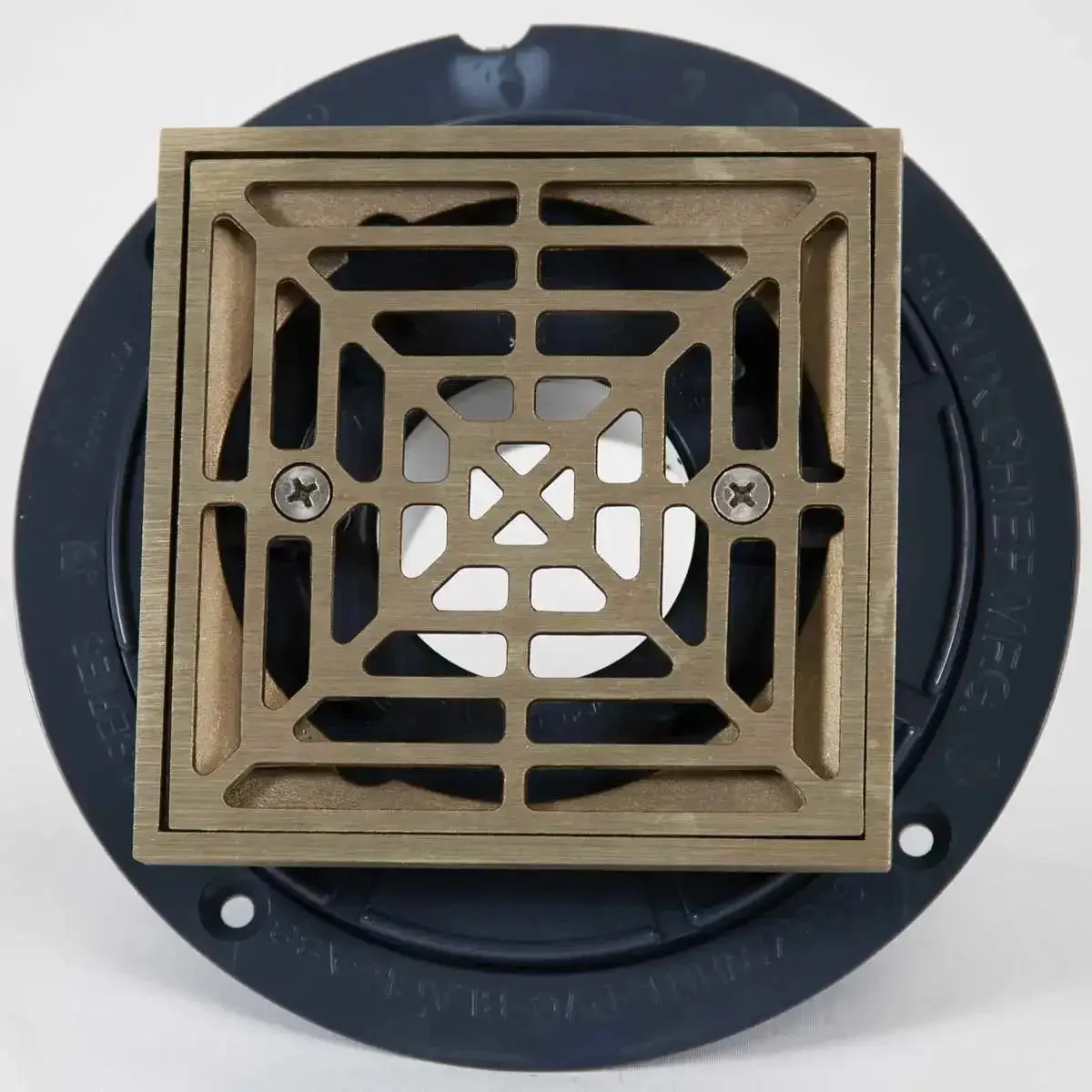

• Strainer styles include 18 gauge stainless steel chrome plated, 3/16" cast nickel/brass
• Top housing: ABS
• Flashing collar: ABS
• Drain Body: ABS
