Excel RC DM Racing AFHDS3 Micro Receiver for Kyosho EVO Chassis

DSK-149

Description:

This 2.4G RC receiver is suitable for KYOSHO Mini-Z EVO Chassis. It is compatible with FLYSKY Noble NB4 transmitter.

 PLEASE NOTE THAT THIS BOARD REQUIRES SOLDERING!  IT DOES NOT HAVE BUILT IN CONNECTORS!

Features:

Product Model: FS-MiniZRF3

Built for: Mini-Z EVO Car

Wireless frequency: 2.4GHz

Wireless protocol: AFHDS 3

Range: > 50m (ground)

Antenna type: single antenna

Power: DC 3.3V±0.1V

RSSI: Supported

Data port: UART

Temperature range: -10 ? — 60 ?

Humidity range: 20% -95%

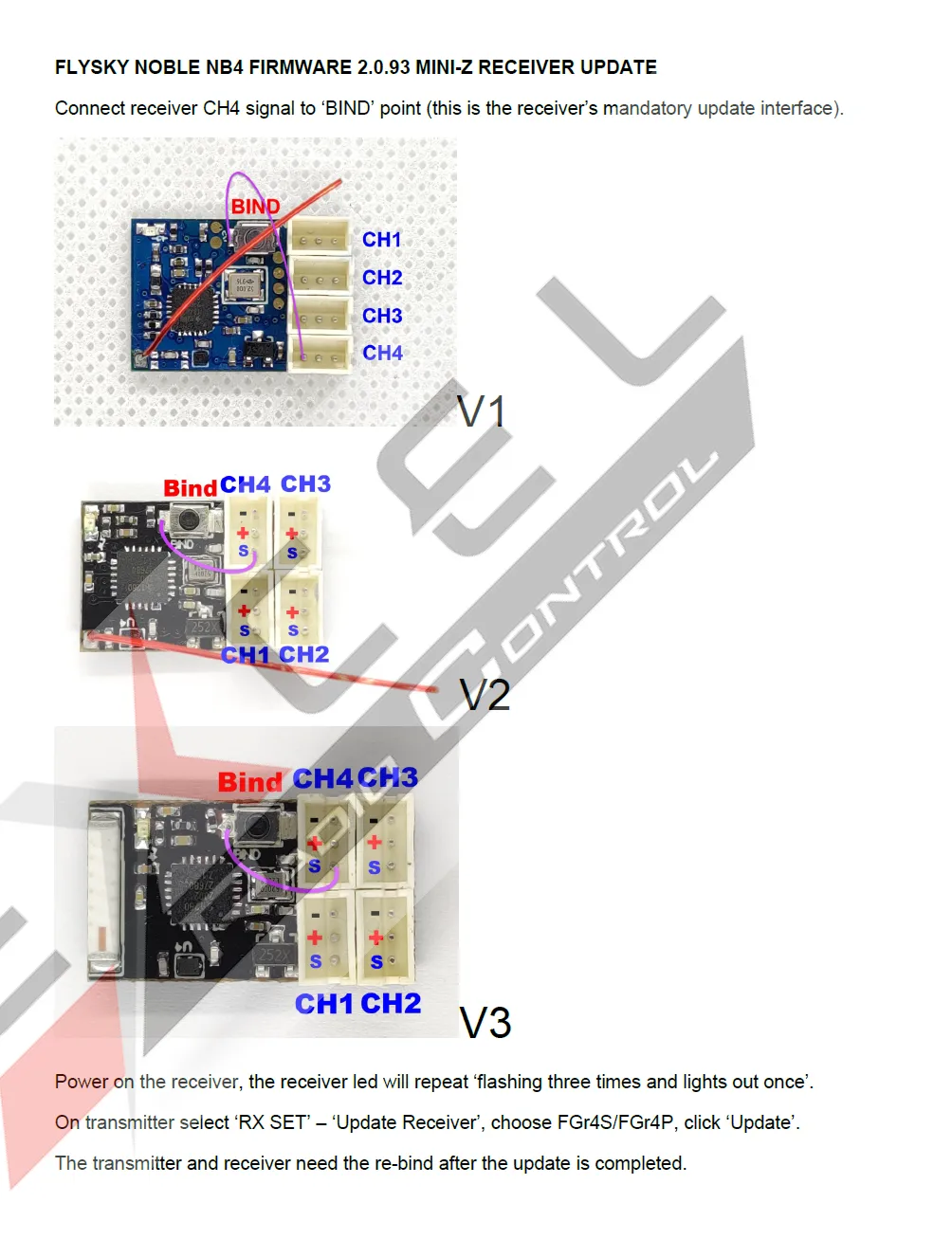

Online Update: Yes

Dimensions: 20*14*3.5mm

Weight: 2.5g

Compatible Transmitter:

FLYSKY Noble NB4

Package Includes:

1 x FLYSKY AFHDS3 Micro Receiver
